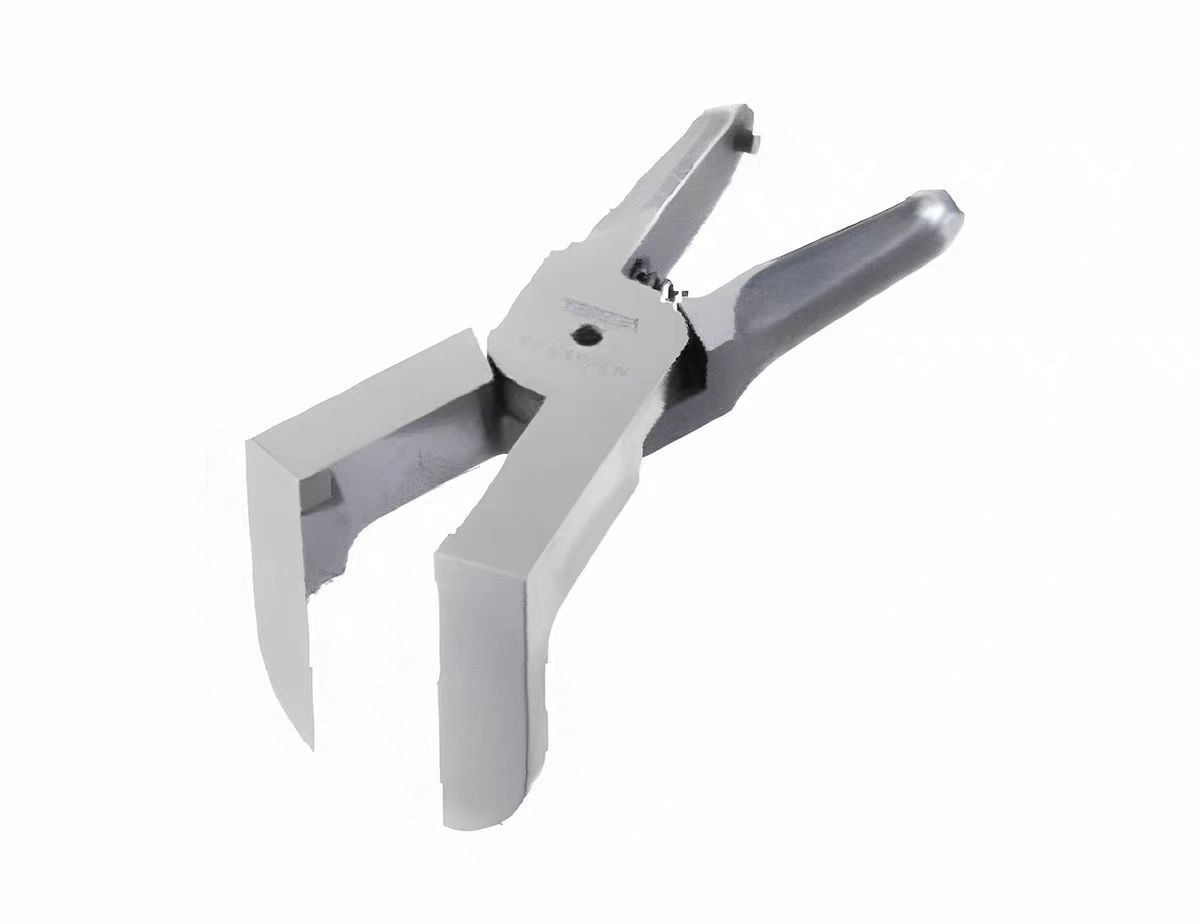

L blades for sprue cut LA5-F3L
The pneumatic scissors are an efficient and precise processing tool for the flow orifices in industrial automation, especially in the field of injection molding. It is usually a key component of the end effector (EOAT, End Of Arm Tooling) of the mechanical arm and is used to automatically trim the gates (or called runners) of plastic products.
Product Details
| Model NO. | Size(mm) | Weight(g) | Material | Application model | |||||
| a | b | c | d | e | L | ||||
|
0
|
31 | 25 | 6.5 | 15 | 7 | 85 | 110 | Special alloy steel | LA5-A10/LA5-B10/LA5-C10 |
|
0
|
44 | 32 | 8.5 | 20 | 12 | 104 | 180 | Special alloy steel | LA5-A20/LA5-B20/LA5-C20/LA5-A25/LA5-B25 |
|
0
|
55.5 | 45.5 | 14.5 | 29 | 16.5 | 139 | 660 | Special alloy steel | LA5-A30/LA5-B30/LA5-C30 |
